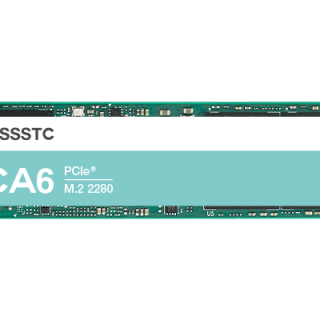

CA6 M.2 2280
NVMe™ SSD
256GB / 512GB / 1024GB / 2048GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen4 x4
Sequential Read: UP to 6,800 MB/s
Sequential Write: UP to 4,800 MB/s
|
Capacity
|
256 GB / 512 GB / 1024 GB / 2048 GB |
|
Interface
|
PCIe® Gen4x4 |
|
Flash Type
|
3D TLC |
|
Form Factor
|
M.2 2280 |
|
Category
|
Industrial |
|
Sequential Read Speed (Max.)
|
6800 MB/s |
|
Sequential Write Speed (Max.)
|
4800 MB/s |
|
K IOPS 4K Random Read/Write (Max.)
|
500/500 IOPS |
|
DWPD
|
> 1 (3 yrs) |
|
MTBF
|
> 3 million hours |
|
Power Consumption
|
8W typ. |
|
Operating Voltage
|
3.3V |
|
Dimensions (L x W x H) mm
|
22 x 80 x 1.5 |
|
Weight (Max.)
|
10g |
|
Temperature
|
0°C to 70°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Features
|
LowPower S.M.A.R.T |
|
PLP
|
FW PLP |
|
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
DRAM Cache
|
With DRAM Cache |
| Model | Remarks | Part number |
|---|---|---|
| CA6-8D256 | Standard Temp | 3C07120475 |
| CA6-8D512 | Standard Temp | 3C07140306 |
| CA6-8D1024 | Standard Temp | 3C07180111 |
| CA6-8D2048 | Standard Temp | 3C07181010 |
Application
FinTech
Financial Technology
Industrial Automation
Industrial Automation
Networking/Telecom
Networking&Telecom
AIoT
AIOT
