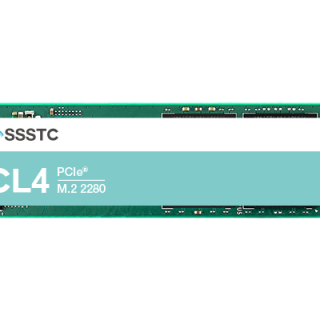

CL4 M.2 2280(pSLC)
NVMe™ SSD
80GB / 160GB / 320GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen4 x4
Sequential Read: UP to 3,500 MB/s
Sequential Write: UP to 2,100 MB/s
|
Interface
|
PCIe Gen4x4 |
|
Capacity
|
80 GB / 160 GB / 256 GB / 320 GB |
|
Flash Type
|
3D pSLC(TLC) |
|
Form Factor
|
M.2 2280 |
|
Sequential Read Speed (Max.)
|
3700 MB/s |
|
Sequential Write Speed (Max.)
|
2600 MB/s |
|
IOPS 4K Random Read/Write (Max.)
|
450K/400K IOPS |
|
MTBF
|
> 3 million hours |
|
DWPD
|
> 1 (3 yrs) |
|
Power Consumption
|
4W typ. |
|
Operating Voltage
|
3.3V |
|
Dimensions (L x W x H) mm
|
80mm x 22mm x 1.5mm |
|
Temperature
|
0°C to 70°C / -40°C to 85°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
10g |
|
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
PLP
|
FW PLP |
|
Features
|
LowPower S.M.A.R.T. |
|
DRAM Cache
|
DRAM-less |
|
Category
|
Industrial |
SSSTC reserves the right to modify or update any specifications or information listed on this website without prior notice. All product information and technical specifications are for reference only, and actual product specifications may vary based on current availability.
| Model | Operation Temperature |
|---|---|
| CL4-8D80N | Standard Temp (0°C to 70°C) |
| CL4-8V80N | Industrial Temp (-40°C to 85°C) |
| CL4-8D160N | Standard Temp (0°C to 70°C) |
| CL4-8V160N | Industrial Temp (-40°C to 85°C) |
| CL4-8D256N | Standard Temp (0°C to 70°C) |
| CL4-8D320N | Standard Temp (0°C to 70°C) |
| CL4-8V320N | Industrial Temp (-40°C to 85°C) |
Application
FinTech
Financial Technology
Industrial Automation
Industrial Automation
Networking & Telecom
Networking & Telecom
AIoT
AIOT
Healthcare
Healthcare
Gaming
Casino Gaming
