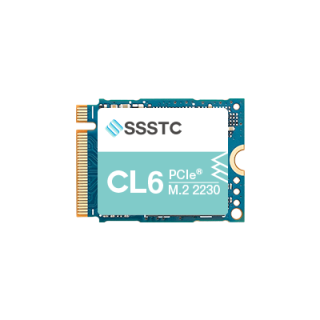

CL6 M.2230
NVMe™ SSD
256GB / 512GB / 1024GB / 2048GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen4 x4
Sequential Read: UP to 6,000 MB/s
Sequential Write: UP to 5,300 MB/s
|
Interface
|
PCIe® Gen4x4 |
|
Capacity
|
256 GB / 512 GB / 1024 GB / 2048 GB |
|
Flash Type
|
3D TLC |
|
Form Factor
|
M.2 2230 |
|
Sequential Read Speed (Max.)
|
6000 MB/s |
|
Sequential Write Speed (Max.)
|
5300 MB/s |
|
IOPS 4K Random Read/Write (Max.)
|
900K/900K IOPS |
|
MTBF
|
> 3 million hours |
|
DWPD
|
> 1 (3 yrs) |
|
Power Consumption
|
4W typ. |
|
Operating Voltage
|
3.3V |
|
Dimensions (L x W x H) mm
|
22 x 30 x 1.5 |
|
Temperature
|
0°C to 85°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
3g |
|
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
PLP
|
FW PLP |
|
Features
|
LowPower S.M.A.R.T |
|
DRAM Cache
|
DRAM-less |
|
Category
|
Industrial |
SSSTC reserves the right to modify or update any specifications or information listed on this website without prior notice. All product information and technical specifications are for reference only, and actual product specifications may vary based on current availability.
| Model | Operation Temperature |
|---|---|
| CL6-3D256 | Standard Temp |
| CL6-3D256 | Standard Temp |
| CL6-3U256 | Standard Temp |
| CL6-3V256 | Standard Temp |
| CL6-3D512 | Standard Temp |
| CL6-3D512 | Standard Temp |
| CL6-3U512 | Standard Temp |
| CL6-3V512 | Standard Temp |
| CL6-3D1024 | Standard Temp |
| CL6-3D1024 | Standard Temp |
| CL6-3U1024 | Standard Temp |
| CL6-3V1024 | Standard Temp |
| CL6-3D2048 | Standard Temp |
| CL6-3D2048 | Standard Temp |
| CL6-3U2048 | Standard Temp |
| CL6-3V2048 | Standard Temp |
