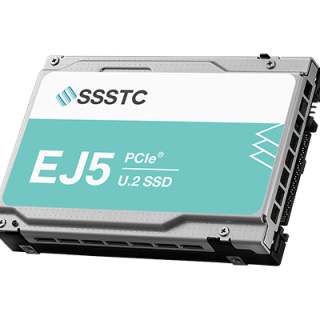

EJ5 U.2 (eTLC)
NVMe™ SSD
3200GB / 3840GB / 6400GB / 7680GB / 12800GB / 15360GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen5 x4
Sequential Read: UP to 14000 MB/s
Sequential Write: UP to 7500 MB/s
Gen5 Enterprise SSD
Targeting AI Applications and High-Performance Computing
High performance
TrueLog 360
Ultra-low latency
SSSTC's exclusive TrueLog 360 technology
A comprehensive logging feature that captures and records critical information about the SSD every hour throughout its entire lifecycle.
This technology provides continuous monitoring and in-depth analysis, allowing enterprise users to track the SSD's health status, temperature anomalies, performance stability, I/O usage, and component conditions at any time. Enabling real-time optimization and adjustments of the platform, environment, and applications without impacting end users, ensuring the stability and performance of the system.
Specifically designed for enterprise applications focusing on AI, data centers, and high-performance computing (HPC) fields.
This series adopts PCIe® 5.0 and NVMe™ 2.0 technology, with maximum sequential read and write speeds of up to 14GB/s and 7.5GB/s, and random read and write speeds reaching 2500K IOPS and 670K IOPS, respectively. Even under varying workloads and intense read/write operations, the QoS performance remains highly consistent, ensuring stable performance across different applications. In addition to ultra-high performance and stability, the EJ5 series features ultra-low latency, with random write latency as low as 14μs, providing rapid and stable data processing capabilities for AI applications.
|
Interface
|
PCIe Gen5x4 |
|
Capacity
|
3200 GB / 3840 GB / 6400 GB / 7680 GB / 12800 GB / 15360 GB |
|
Flash Type
|
3D eTLC |
|
Form Factor
|
U.2 |
|
Sequential Read Speed (Max.)
|
14000 MB/s |
|
Sequential Write Speed (Max.)
|
7500 MB/s |
|
IOPS 4K Random Read/Write (Max.)
|
2500K/360K IOPS |
|
MTBF
|
> 3 million hours |
|
DWPD
|
> 1 (5 yrs) / 1 (5 yrs) |
|
Power Consumption
|
25W typ. |
|
Operating Voltage
|
12V |
|
Dimensions (L x W x H) mm
|
100.45mm x 69.85mm x 15mm |
|
Temperature
|
0°C to 70°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
127g |
|
Security
|
TCG Opal |
|
PLP
|
HW PLP |
|
Features
|
S.M.A.R.T |
|
DRAM Cache
|
With DRAM Cache |
|
Category
|
Enterprise |
| Model | Operation Temperature | Part number |
|---|---|---|
| EJ5-2W3200P | Standard Temp(0°C to 70°C) | 3K15183011 |
| EJ5-2W3200P | Standard Temp(0°C to 70°C) | 3K15183013 |
| EJ5-2W3840P | Standard Temp(0°C to 70°C) | 3K15183010 |
| EJ5-2W3840P | Standard Temp(0°C to 70°C) | 3K15183012 |
| EJ5-2W6400P | Standard Temp(0°C to 70°C) | 3K15190011 |
| EJ5-2W6400P | Standard Temp(0°C to 70°C) | 3K15190013 |
| EJ5-2W7680P | Standard Temp(0°C to 70°C) | 3K15190012 |
| EJ5-2W7680P | Standard Temp(0°C to 70°C) | 3K15190010 |
| EJ5-2W12800P | Standard Temp(0°C to 70°C) | 3K151B1010 |
| EJ5-2W12800P | Standard Temp(0°C to 70°C) | 3K151B1008 |
| EJ5-2W15360P | Standard Temp(0°C to 70°C) | 3K151B1007 |
| EJ5-2W15360P | Standard Temp(0°C to 70°C) | 3K151B1009 |
Application
Server & Cloud
Server & Cloud
