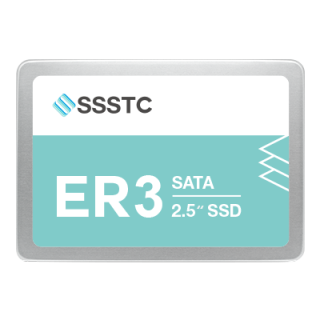

ER3 2.5" (eTLC)
SATA SSD
240GB / 480GB / 960GB / 1920GB
NAND Flash: 3D TLC NAND Flash
Interface: SATA 3 (6Gb/s)
Sequential Read: UP to 520 MB/s
Sequential Write: UP to 520 MB/s
|
Interface
|
SATA 3 6.0Gb/s |
|
Capacity
|
240 GB / 480 GB / 960 GB / 1920 GB |
|
Flash Type
|
3D eTLC |
|
Form Factor
|
2.5" |
|
Sequential Read Speed (Max.)
|
520 MB/s |
|
Sequential Write Speed (Max.)
|
520 MB/s |
|
IOPS 4k Random Read/Write (Max.)
|
90K/45K IOPS |
|
MTBF
|
> 3 million hours |
|
DWPD
|
= 1 (5 yrs) / > 1 (5 yrs) |
|
Power Consumption
|
3W typ. |
|
Operating Voltage
|
5V |
|
Dimensions (L x W x H) mm
|
100.45mm x 69.85mm x 7mm |
|
Temperature
|
0°C to 70°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
56g |
|
Security
|
AES-256 E2E Data Protection LDPC ECC |
|
PLP
|
HW PLP |
|
Features
|
S.M.A.R.T. SulfurResistance |
|
Category
|
Enterprise |
SSSTC reserves the right to modify or update any specifications or information listed on this website without prior notice. All product information and technical specifications are for reference only, and actual product specifications may vary based on current availability.
| Model | Operation Temperature |
|---|---|
| ER3-CD240 | Standard Temp (0°C to 70°C) |
| ER3-CD480 | Standard Temp (0°C to 70°C) |
| ER3-CD480A | Standard Temp (0°C to 70°C) |
| ER3-CD960A | Standard Temp (0°C to 70°C) |
| ER3-CD1920A | Standard Temp (0°C to 70°C) |
Application
Networking & Telecom
Networking & Telecom
Server & Cloud
Server & Cloud
