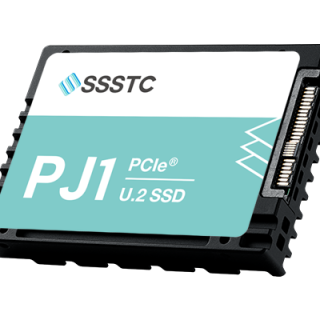

PJ1 U.2(eTLC)
NVMe™ SSD
1920GB / 3840GB / 7680GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen4 x4
Sequential Read: UP to 7,000 MB/s
Sequential Write: UP to 4,200 MB/s
|
Interface
|
PCIe® Gen4x4 |
|
Capacity
|
1920 GB / 3840 GB / 7680 GB |
|
Flash Type
|
3D eTLC |
|
Form Factor
|
U.2 |
|
Sequential Read Speed (Max.)
|
7000 MB/s |
|
Sequential Write Speed (Max.)
|
4200 MB/s |
|
IOPS 4K Random Read/Write (Max.)
|
900K/160K IOPS |
|
MTBF
|
> 3 million hours |
|
DWPD
|
> 1 (5 yrs) |
|
Power Consumption
|
20W typ. |
|
Operating Voltage
|
12V (Max.) |
|
Dimensions (L x W x H) mm
|
69.85mm x 100.45mm x 15mm |
|
Temperature
|
0°C to 85°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
175g |
|
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
PLP
|
FW PLP HW PLP |
|
Features
|
S.M.A.R.T SulfurResistance |
|
DRAM Cache
|
With DRAM Cache |
|
Category
|
Enterprise |
SSSTC reserves the right to modify or update any specifications or information listed on this website without prior notice. All product information and technical specifications are for reference only, and actual product specifications may vary based on current availability.
| Model | Operation Temperature |
|---|---|
| PJ1-2W1920P | Standard Temp |
| PJ1-2W3840P | Standard Temp |
| PJ1-2W7680P | Standard Temp |
Application
Server & Cloud
Server & Cloud
