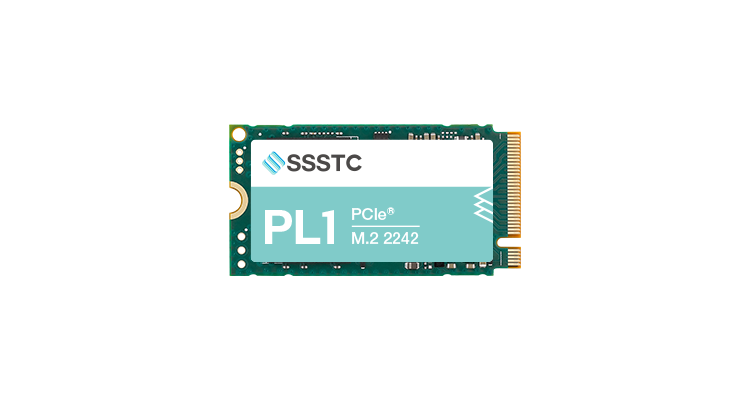

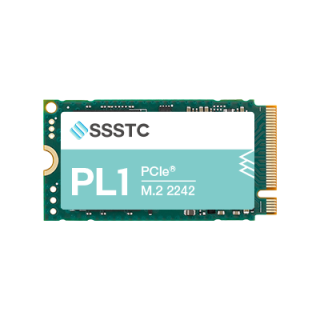

PL1 M.2 2242 (pSLC)

NVMe™ SSD

40GB / 80GB / 160GB / 320GB / 640GB /1280GB

NAND Flash: 3D TLC NAND Flash

Interface: PCIe® Gen3 x4

Sequential Read: 3,100 MB/s

Sequential Write: 1,500 MB/s

Technical
Garbage Collection

Garbage Collection

Anti-Vibration

Anti-Vibration

Anti-Shock

Anti-Shock

Over Provision

Over Provision

AES-256

AES-256

ESD Safety

ESD Safety

EMI Safety

EMI Safety

TRIM

TRIM

Wear Leveling

Wear Leveling

Temperature Monitoring

Temperature Monitoring

OVP/OCP

OVP/OCP

ELPM

ELPM

S.M.A.R.T.

S.M.A.R.T.

Interface
PCIe Gen3x4
Capacity
40 GB / 80 GB / 160 GB / 320 GB / 640 GB / 1280 GB
Flash Type
3D pSLC(TLC)
Form Factor
M.2 2242
Sequential Read Speed (Max.)
3100 MB/s
Sequential Write Speed (Max.)
1500 MB/s
IOPS 4K Random Read/Write (Max.)
200K/240K IOPS
MTBF
> 3 million hours
DWPD
> 1 (3 yrs, client)
Power Consumption
3W typ.
Operating Voltage
3.3V
Dimensions (L x W x H) mm
42mm x 22mm x 1.35mm / 42mm x 22mm x 1.35mm/1.35mm / 42mm x 22mm x 1.5mm/1.5mm
Temperature
0°C to 85°C / -25°C to 85°C / -40°C to 85°C
Storage Temperature
-40°C to 85°C
Weight (Max.)
4g
Security
AES-256
E2E Data Protection
LDPC ECC
TCG Opal
PLP
FW PLP
Features
LowPower
S.M.A.R.T
DRAM Cache
DRAM-less
Category
Industrial

SSSTC reserves the right to modify or update any specifications or information listed on this website without prior notice. All product information and technical specifications are for reference only, and actual product specifications may vary based on current availability.

Model Operation Temperature Part number
PL1-4D40N Standard Temp(0°C to 85°C) 3C07110419
PL1-4U40N Extended Temp(-25°C to 85°C) 3C07110418
PL1-4V40N Industrial Temp(-40°C to 85°C) 3K07110412
PL1-4V40N Industrial Temp(-40°C to 85°C) 3C07110412
PL1-4D80N Standard Temp(0°C to 85°C) 3C07120586
PL1-4U80N Extended Temp(-25°C to 85°C) 3C07120585
PL1-4V80N Industrial Temp(-40°C to 85°C) 3C07120579
PL1-4D160N Standard Temp(0°C to 85°C) 3C07140421
PL1-4U160N Extended Temp(-25°C to 85°C) 3C07140420
PL1-4V160N Industrial Temp(-40°C to 85°C) 3C07140414
PL1-4D320N Standard Temp(0°C to 85°C) 3C07180216
PL1-4U320N Extended Temp(-25°C to 85°C) 3C07180215
PL1-4V320N Industrial Temp(-40°C to 85°C) 3C07180209
PL1-SD640N Standard Temp(0°C to 85°C) 3C07181069
PL1-SU640N Extended Temp(-25°C to 85°C) 3C07181068
PL1-SV640N Industrial Temp(-40°C to 85°C) 3C07181063
PL1-SD1280N Standard Temp(0°C to 85°C) 3C07183012
PL1-SU1280N Extended Temp(-25°C to 85°C) 3C07183011
PL1-SV1280N Industrial Temp(-40°C to 85°C) 3C07183008
Application

FinTech

Financial Technology

Industrial Automation

Industrial Automation

Networking & Telecom

Networking & Telecom

Healthcare

Healthcare

Gaming

Gaming
